description: >-
  Animations Module: an area that adds motion to your augmented reality object.
  This AR functionality breaths life into your creation!
---

# 💨 Animations

## Glossary of Studio Terms

**Loop: for those 3D model experiences with "baked" animations.** Creators can choose what type of animation cadence they'd like for their experiences _(note: supported with world, face, and marker tracked placements)_:\
+**Loop once**: plays the animation one time\
+**Loop repeat**:  In repeat and pingpong modes, the clip plays once plus the specified number of repetitions. \
+**Loop pingpong:** In pingpong modes, the clip plays once plus the specified number of repetitions. For pingpong, every second clip plays in reverse.

**Time Scale:** Scaling factor for playback speed. A value of 0 causes the animation to pause. A value of 1 is normal playback speed. Negative values cause the animation to play backwards.

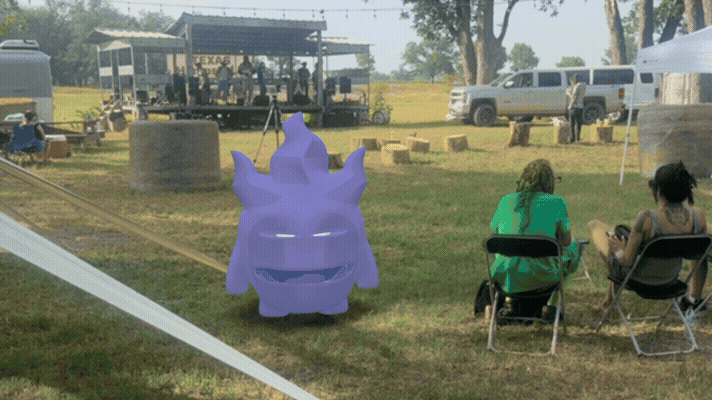

<figure><img src="https://3634829135-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDz8s4S73Ev6JLRQmTW58%2Fuploads%2FvbOLk0Y9GY38YfXgkaPC%2FScreenRecording_05-24-2025%2018-15-23_1.gif?alt=media&#x26;token=e58824c1-0de9-47fb-a00c-55244fc53071" alt=""><figcaption><p>The looping feature is applied to those experiences with baked animations.</p></figcaption></figure>

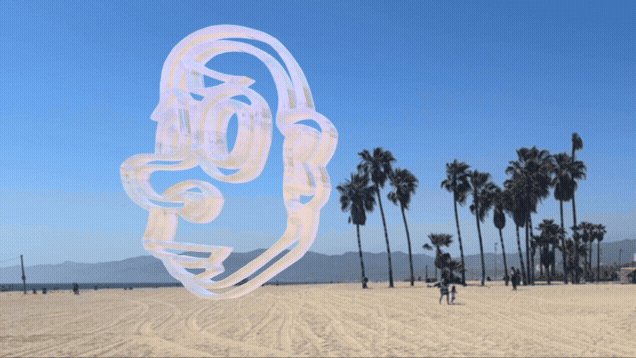

### **Animated Rotation**

Set up an animation of the model over a specific axis. \
&#xNAN;_(note: works with world tracking and marker tracking based experiences)_

**Axis:** the x, y, or z dimension that the creator can determine the animation rotates over. Value for each are between -1 to 1.

**Revolution Speed:** the speed for a single full revolution in milliseconds. Note: the higher the number the slower the revolution speed.

<figure><img src="https://3634829135-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDz8s4S73Ev6JLRQmTW58%2Fuploads%2FygoLoENcB1vcib4bH6en%2FHerbertV1_beach.gif?alt=media&#x26;token=2a31609e-dd02-447a-9edd-3aa26085b5f0" alt=""><figcaption></figcaption></figure>

## How to Configure an Animation in the Studio

1. Upload a photo/video/3D object/message in General Data
2. Navigate to Editor Mode > Animations Module
3. Select the animation loop&#x20;
4. Turn on the animated rotation
5. Choose the access
6. Select the speed
7. Save

<div data-full-width="false"><figure><img src="https://3634829135-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDz8s4S73Ev6JLRQmTW58%2Fuploads%2FJqs5Bgxv0Mcr9alyil6L%2Fanimations.png?alt=media&#x26;token=4aee3368-8646-4c6f-8462-6b5b3d420a78" alt=""><figcaption></figcaption></figure></div>
